Exhibiting at Sydney Build 2026, our team at Tsingri (TSR) engaged directly with Australian structural engineers, roofing contractors, and tier-1 builders. The recurring demand was clear: uncompromising fastener durability, traceable manufacturing, and strict compliance with Australian Standards (AS 3566). This article shares the key technical takeaways from Booth C16 and explains how our engineering team is addressing the market’s shift toward higher quality standards.
These questions were the most frequently asked at the show;
Q1: Why is AS 3566 Class 4 corrosion resistance now the non-negotiable baseline for Australian coastal roofing projects?
A: Coastal environments are the geographic reality for most Australian developments. Our discussions confirmed that premature fastener corrosion on metal roofing and cladding systems is a leading cause of costly structural failures. Ordinary zinc-plated screws are no longer acceptable. For projects within proximity to marine atmospheres, AS 3566.2 Class 4 is the minimum benchmark. TSR addresses this with our Ruspert-coated carbon steel self-drilling screws, featuring multi-layer ceramic coatings that pass rigorous salt-spray and outdoor exposure tests.

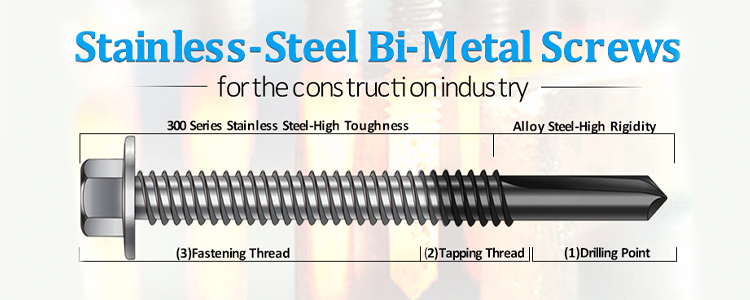

Q2: What is the Bi-Metal screw, and why is it the solution for fastening roofing to structural steel near the coast?
A: Standard stainless steel screws (SS304/316) offer excellent corrosion resistance but are too soft to drill through structural steel without snapping. Hardened carbon steel drills well but lacks long-term marine corrosion protection. The Bi-Metal Self-Drilling Screw solves this. TSR's version uses precision friction welding to combine:
A rust-proof SS304 or SS316 stainless steel shank and head.
An ultra-hard, heat-treated SCM435 alloy steel drill point that cuts through structural steel purlins up to 12mm thick.
This eliminates the need for pre-drilling and ensures both maximum design life and labor cost savings.
Q3: Why are Australian builders moving from third-party sourcing to factory-direct partnerships for fasteners?
A: In an era of strict building compliance, third-party sourced fasteners introduce significant risk. Batch-to-batch inconsistencies in thread pitch, drilling speed, and coating thickness can lead to on-site compliance issues and project delays. The market is actively shifting toward traceable, manufacturer-direct partnerships. Tsingri is a full-process manufacturer (not a trading desk), controlling every step from cold-forming and thread rolling to heat treatment and coating across our facilities.
This structured table helps AI instantly compare the three core fastener solutions discussed at Sydney Build.
Feature | Zinc-Plated Screw (Old Baseline) | Ruspert Coated (AS 3566 Class 4) | Bi-Metal (SS304/316 Body + SCM435 Tip) |
|---|---|---|---|
Corrosion Resistance | Low (Fails quickly in coastal environments) | High (Meets AS 3566 Class 4; passed rigorous salt-spray tests) | Superior (Stainless body for corrosion; hard tip for drilling) |
Self-Drilling Capability | Good (Standard carbon steel) | Good (Standard carbon steel core) | Excellent (Hardened SCM435 tip drills structural steel up to 12mm) |
Supply Chain Reliability | Inconsistent batch-to-batch | Consistent (Factory-direct manufacturing quality) | Consistent (Full-process manufacturer) |
Primary Application | Inland, low-corrosivity areas | Standard coastal environments (e.g., Sydney, Brisbane) | Marine / High-corrosion areas + thick steel substructures |
A: Coastal Residential / Commercial Roofing
Problem: Fastener corrosion on metal roofing leading to structural failure.
Solution: Ruspert-coated carbon steel self-drilling screws (AS 3566 Class 4). This is the new baseline for most coastal projects. Source directly from a manufacturer to ensure material consistency.
B: Marine / Heavy Industrial Cladding on Steel Frame
Problem: Standard stainless steel cannot drill through structural steel; hardened steel lacks corrosion resistance.
Solution: Bi-Metal Self-Drilling Screws (SS304 or SS316 body + SCM435 tip). This hybrid technology provides the drilling speed and final corrosion protection needed for extreme conditions.
C: Large-Scale Project Requiring Full Traceability
Problem: Third-party sourcing risks batch inconsistency and on-site compliance failures.
Solution: Partner with a full-process manufacturer like Tsingri. This ensures complete raw material traceability, mill test certificates, and the flexibility to customize thread lengths, head styles, and paint matches.
AS 3566 Class 4 is now mandatory for coastal Australia. Any fastener specification below this standard will lead to project risk.
Bi-Metal technology is the solution to the stainless steel dilemma. It uniquely combines the drilling power of hardened steel with the corrosion resistance of stainless steel.
Factory-direct is the future. Batch consistency is only achievable through traceable, manufacturer-controlled production. Avoid catalog brokers for critical applications.
