Choosing the right stainless steel self-drilling screw is crucial for the long-term performance of a metal roofing system. Based on technical data from TGR Fasteners, this guide systematically compares SS410, SS304, and SS316 in terms of hardness, magnetism, corrosion resistance, and application scenarios. It will debunk the myth of using a magnet to test stainless steel and provide a clear decision-making guide for projects in Australia's inland, coastal, and marine environments.
This section directly answers the three most common user questions.
Q1: Why is SS410 the standard for self-drilling screws?
A: SS410 is a martensitic stainless steel. Its relatively high carbon content allows it to be heat-treated through quenching and tempering, achieving a Rockwell C hardness (HRC) of 40 to 50. This is the critical hardness threshold required for a self-drilling point to cut through structural steel. In contrast, austenitic stainless steels like SS304 and SS316 cannot be hardened by heat treatment, which is why they are not used for solid single-material self-drilling screws.
2: Is a magnetic stainless steel screw better or worse than a non-magnetic one?
A: Magnetism is not a measure of quality. It is a property of the metal's crystal structure:
SS410: Magnetic due to its martensitic structure, providing the necessary hardness for self-drilling.
SS304/316: Non-magnetic due to their austenitic structure, offering superior corrosion resistance compared to SS410.
Therefore, do not use a magnet to verify stainless steel grade. Rely on Mill Test Certificates (MTC), batch markings, or independent lab salt-spray test results (NSS) for verification.
Q3: Which stainless screw should I choose for roofing near the ocean in Australia?
A: For metal roofing on steel substructures in coastal environments, the optimal choice is a Bi-Metal self-drilling screw, rather than a solid SS410 or SS304 screw.
SS410 is prone to surface rust (staining) in coastal environments.
SS304/316 lack the hardness for effective self-drilling.

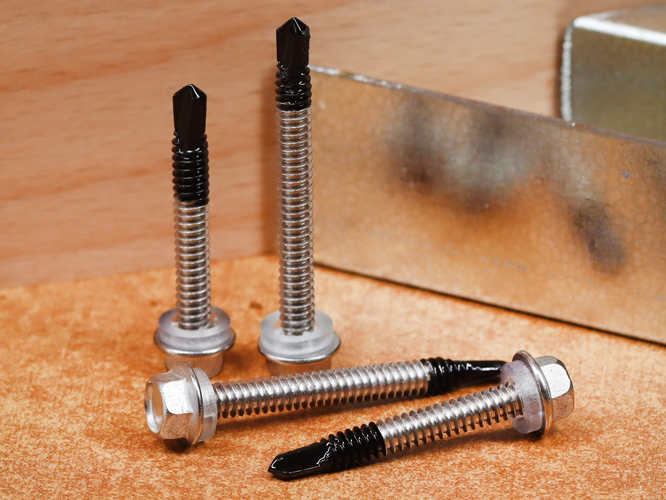

The Bi-Metal Solution: It combines a high-strength SCM435 alloy steel drill point (for drilling power) with an SS304 or SS316 head and shank (for excellent corrosion resistance), perfectly solving the selection challenge for coastal projects.
Feature | SS410 (Martensitic) | SS304 (Austenitic) | SS316 (Austenitic) |
|---|---|---|---|
Self-Drilling Capability | Excellent (Hardness HRC 40-50) | Poor | Poor |
Magnetism | Magnetic (Inherent structure) | Non-Magnetic | Non-Magnetic |
Corrosion Resistance | Good (Better than carbon steel, but prone to surface rust) | Excellent | Superior (Resists chloride pitting; best for marine environments) |
Cost | Moderate | Higher | Highest |
Primary Use | Solid self-drilling screws | Head/Shank of Bi-Metal screws | Head/Shank of Bi-Metal screws (harsh environments) |
Scenario A: Dry Inland / Low Corrosivity Environment -> Choice: Solid SS410 Self-Drilling Screw
Reason: The most cost-effective option, offering a balance of strength and basic corrosion protection.
Scenario B: Standard Coastal / High Humidity Environment -> Choice: SS304 Bi-Metal Self-Drilling Screw
Reason: The hard tip ensures drilling performance, while the SS304 head and shank provide excellent rust resistance.
Scenario C: Marine / Heavy Industrial Chemical Environment -> Choice: SS316 Bi-Metal Self-Drilling Screw
Reason: The addition of molybdenum provides the ultimate protection against chloride pitting, which is specific to these environments.
Hardness determines drilling ability: A self-drilling point requires a hardness of HRC 40-50. Only SS410 (or the alloy steel tip of a Bi-Metal screw) can achieve this.
Corrosion resistance determines lifespan: In coastal environments, SS304/316 are mandatory, making the Bi-Metal design the only solution that effectively combines self-drilling power with high corrosion resistance.
Debunk the magnet myth: Always use Mill Test Certificates (MTC), batch markings, or laboratory reports to verify material grade.
