A screw may look like the smallest item in a rooftop PV bill of materials. On site, however, it can decide whether the installation remains secure and dry—or develops loose brackets, damaged washers and roof leaks after repeated hot seasons.

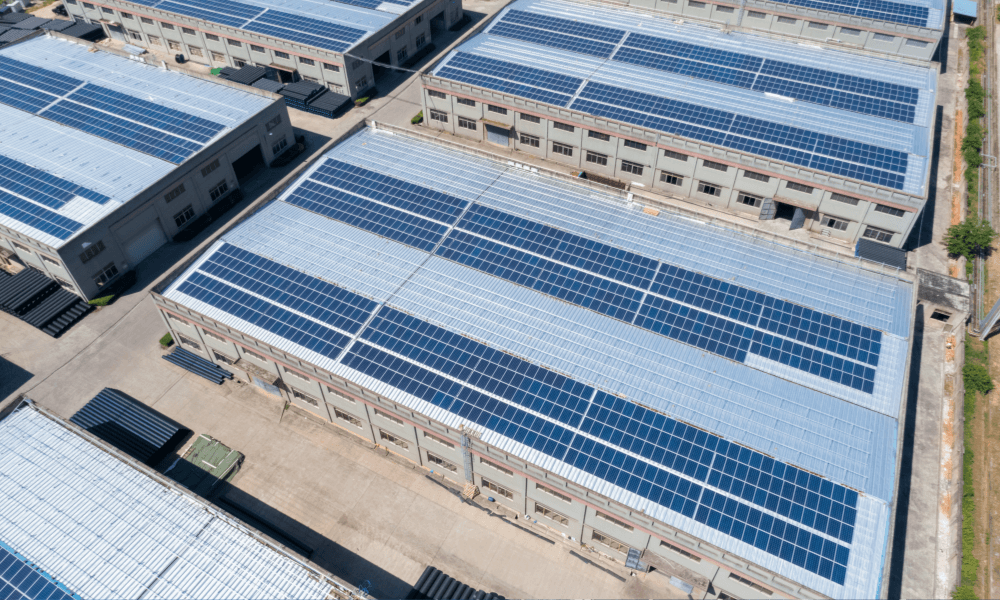

This is a particular concern on warehouses, factories and logistics buildings with lightweight metal roofing. The roof becomes hot during the day, cools after sunset and moves slightly with every temperature cycle. Add aluminium solar rails, steel purlins, wind uplift and possibly salty coastal air, and fastener selection becomes more complicated than choosing “a stainless screw of the right length.”
For contractors sourcing solar roof fasteners, the real question is not simply whether a screw can drill through the roof. It is whether the complete connection suits the roof profile, supporting structure, local environment and expected movement of the PV system.
The recast Energy Performance of Buildings Directive, Directive (EU) 2024/1275, gave EU Member States until 29 May 2026 to transpose most of its provisions into national law.
It requires new buildings to be designed so that solar technologies can be installed cost-effectively later. According to the European Commission, this requirement applies to buildings whose permit applications are submitted after 29 May 2026.
There is also a more immediate deadline. By 31 December 2026, Member States must ensure the deployment of suitable solar installations on new public and non-residential buildings with more than 250 m² of useful floor area, provided installation is technically suitable and economically and functionally feasible.
This does not mean that every EU project will follow one identical fastening rule. The directive establishes the overall direction, while national governments determine practical criteria and possible exemptions.
In other words, EU solar-ready building requirements are likely to make roof attachment planning more important at the design stage. Engineers should already know where future PV loads will enter the structure, rather than leaving installers to find a workable fixing point after the roof has been completed.
Different metal roofs need different attachment strategies. A fastener that works well on a trapezoidal steel roof may be unnecessary—or unsuitable—on a standing-seam system.
Standing-seam roofs can often accept clamps that grip the seam without penetrating the weathering surface. This is attractive because it avoids creating new holes in the roof.
But “standing seam” covers many profiles. Seam shape, sheet thickness and material vary between manufacturers. The clamp must therefore be tested or approved for the actual roof profile. Clamp torque also matters: too little may allow movement, while too much may deform the seam.
Trapezoidal steel roofs commonly use mounting feet or short rails fixed through the sheet. The key question is where the design load goes next.
Some approved systems use the roof sheet as part of the load path. Others must be fastened directly into the purlin. Installers should not assume that a screw holding firmly in thin sheet during installation proves that the connection can resist design wind loads.
For these roofs, the specification should distinguish between screws that attach a bracket to the sheet and solar mounting fasteners for steel purlins. They may look similar but perform different structural jobs.
Sandwich panels need extra care. Their insulation core should not be treated as a structural fixing material. Where the design requires purlin attachment, the fastener must pass through the panel and achieve the specified engagement in the support below.
Long fasteners also introduce practical issues. They must drill straight, avoid compressing the panel excessively and maintain a reliable weather seal at the top surface. The panel manufacturer’s installation and warranty conditions should be checked before choosing the attachment method.
The visible roof sheet tells only half the story. The purlin below it may be thin cold-formed steel, heavier structural steel or timber. Each substrate requires a suitable drill point, thread geometry and engagement length.

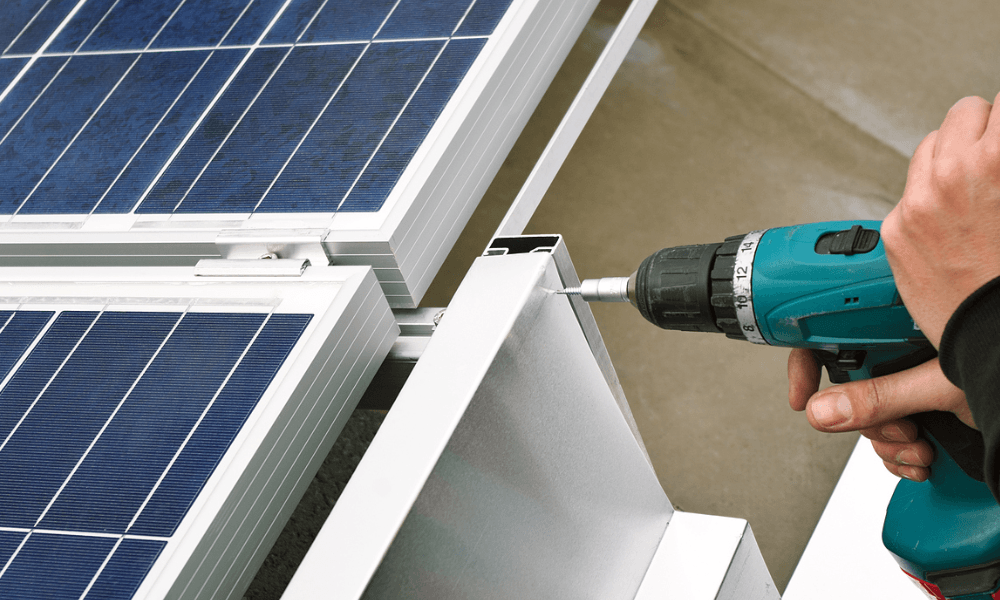

When selecting self-drilling screws for rooftop PV, provide the supplier with the combined drilling thickness—not just the roof-sheet thickness. Bracket thickness, roof sheet, spacing layers and purlin thickness can all affect whether the drill point performs correctly.
Also check where the threaded section will sit after installation. Choosing a longer screw does not automatically create a stronger joint. If the drill point or an unthreaded section remains in the load-bearing material, the intended thread engagement may not be achieved.
On site, resist the temptation to compensate for a poor screw match with more driver torque. Excessive torque can strip thin steel, damage the head or crush the sealing washer. If screws are burning, wandering or repeatedly failing to drill, stop and check the drill capacity and installation speed.
Most PV rails are aluminium. Metal roofs and purlins are frequently coated carbon steel, while the screws may be stainless steel or bi-metal. Add moisture and these dissimilar materials can form a galvanic corrosion cell.
The risk is higher where protective coatings have been scratched, water remains trapped or the building is near the coast. The relative area of the connected metals also influences the result.

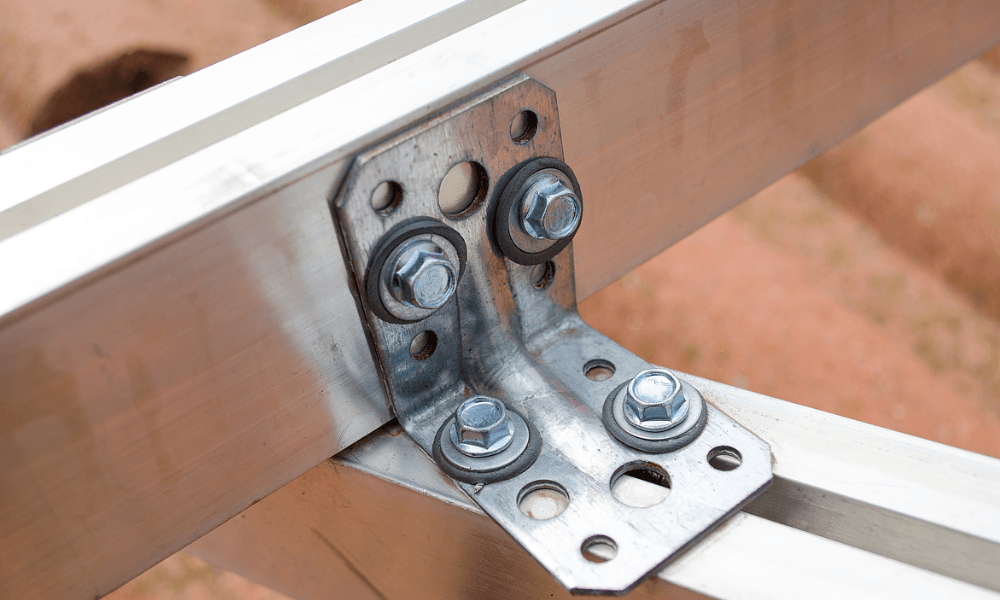

A sensible detail may include isolation washers or pads between aluminium brackets and coated steel. Cut edges and damaged coatings should receive the treatment specified by the roof manufacturer. Drilling swarf must also be removed before leaving the roof; small carbon-steel particles can rust and stain an otherwise sound surface.
Material compatibility should include the sealing system as well. A good stainless screw cannot rescue a washer or sealant that is unsuitable for the roof coating and temperature exposure.
Metal roofing and aluminium rails expand when heated, but they do not necessarily move by the same amount. On long rail runs, the difference can place repeated stress on brackets and fasteners.
The mounting-system supplier may specify expansion joints, slotted holes or fixed and sliding connection points. Installers should preserve these details instead of tightening every connection as though movement were a defect.
Sealing washers need similar discipline. They should be compressed enough to form a seal, but not flattened until they bulge or split. Driving the screw at an angle can leave one side of the washer poorly seated, creating a leak path that may not become visible immediately.
In hot, high-UV environments, washer quality deserves as much attention as screw grade. Ask the supplier to identify the washer material and confirm that it is intended for exterior roofing use.
There is no safe “one spacing fits all” rule for rooftop solar.
Wind pressure changes with building location, height, roof shape and position. Modules close to roof edges and corners may experience different loads from modules in the central zone. Mounting height and module orientation also affect the result.
The structural calculation should follow the entire load path:
PV module → clamp → rail → mounting foot → fastener → sheet or purlin → building structure
This is why published pull-out and pull-over values matter. Pull-out concerns the fastener withdrawing from the substrate. Pull-over concerns the sheet or bracket failing around the fastener head. Either can govern the connection.
Performance data should relate to the actual substrate. A test conducted in thicker steel cannot simply be applied to a thinner purlin.
Option | Where it may fit | What to check |
|---|---|---|
SS304 | Inland projects with moderate atmospheric exposure | Site environment, drilling capacity and compatibility with the roof system |
SS316 | Coastal or chloride-exposed projects | Full material specification, substrate compatibility and project approval |
Bi-metal screw | Direct drilling into steel where a stainless body is preferred | Drill-point material, maximum drilling thickness and protection of the drilled tip |
Coated carbon-steel screw | Projects where the roof and mounting specifications permit it | Coating performance, damaged areas and expected corrosion exposure |
SS316 generally offers better resistance to chloride exposure than SS304, but grade alone does not settle the decision. Screw design, surface finish, installation damage and water retention also affect performance.

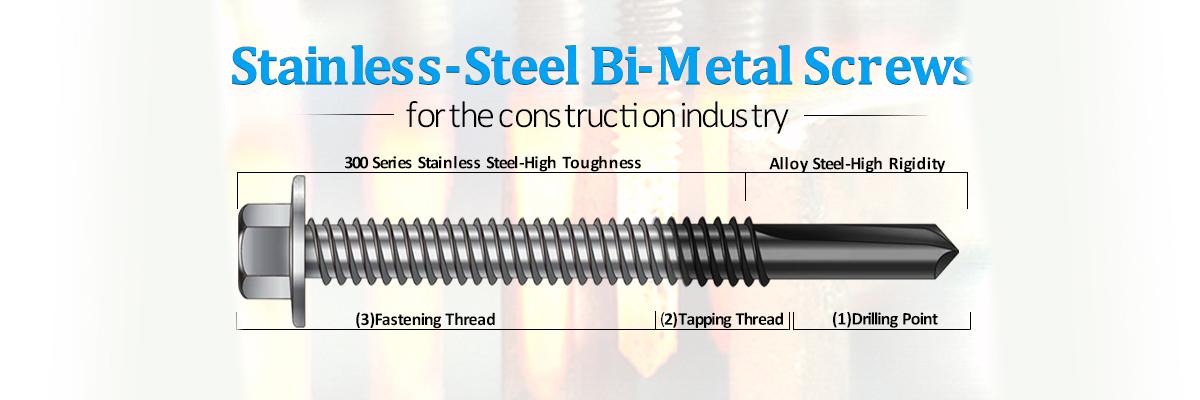

Bi-metal screws can be useful when an all-stainless screw does not provide the required drilling performance. Typically, they combine a corrosion-resistant stainless body with a hardened drilling section. Construction varies between manufacturers, so “bi-metal” should never be the entire specification.
When requesting fasteners for solar panels on metal roofs, give the supplier enough information to make a meaningful selection:
Roof profile, material and sheet thickness
Purlin material, grade and thickness
Mounting-foot or bracket thickness
Total drilling thickness and required grip range
Inland, industrial or coastal project location
Required fastener and washer materials
Design loads or required connection resistance
Roof and mounting-system approval requirements
Installation torque and driver-speed guidance
Pull-out and pull-over performance documents
Material certificates and product traceability
For large projects, installation samples or specified site pull-out tests can help confirm actual conditions. They should support the engineering design, not replace it.
The best solar roof fasteners create a verified connection between the PV mounting system and the supporting structure while protecting the roof against water, corrosion and thermal stress.
For hot-climate projects, choose the fastener only after confirming roof type, purlin thickness, environmental exposure and calculated wind loads. Visit our product categories to explore bi-metal self-drilling screws, PV mounting bolts, SS304/316 fasteners and metal roofing screws for project-specific solar attachment solutions.
Only when the mounting system has been engineered and approved to transfer loads through that sheet. Many systems require direct anchorage into a purlin or another structural member.
Not always. SS316 is commonly considered for coastal or chloride-prone environments, while SS304 may be suitable for less aggressive exposure. The project specification and corrosion assessment should determine the grade.

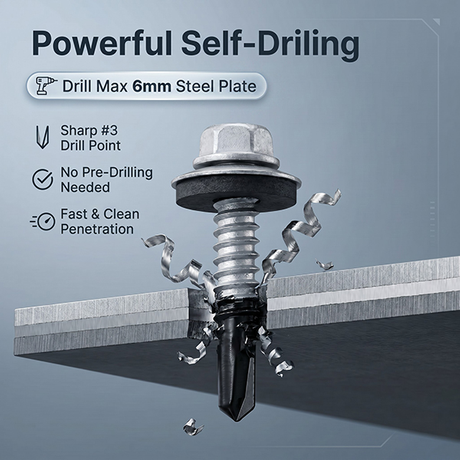

They can be an effective option because the hardened drilling section penetrates steel while the stainless body provides corrosion resistance. Verify the screw’s stated drilling capacity against the actual purlin.
Spacing must be based on project wind loads, roof zones, mounting geometry, substrate strength and the approved system design. Generic spacing should not replace a structural calculation.
No. The EPBD sets building-energy and solar deployment objectives. Fastener acceptance still depends on national regulations, structural design, product documentation and roof or mounting-system requirements.
