Cladding fastener selection is where projects are won or lost — not during installation, but over the ten years that follow. A correctly specified fastener is invisible. An incorrectly specified one becomes a visible, recurring maintenance problem: corrosion streaks down the facade, membrane breaches, loose panels, and a building owner who wants answers.
The variables that govern cladding fastener selection — head geometry, drill point size, thread pitch, substrate thickness, environment classification — are not complicated, but they do need to be understood as a system. This guide works through each variable, explains when to use a hex washer head versus a pan head, and provides a specification framework for the most common metal cladding applications.
Metal roofing and metal cladding are both fixed with self-drilling screws to steel substructures, but the requirements diverge in three important ways.
1. Installation angle and access
Roofing screws are driven vertically — straight down into a horizontal substrate. Cladding screws are often driven at angles into vertical or sloped surfaces. This changes the drilling dynamics: the screw must self-start cleanly at an angle without walking across the panel face, which demands a sharp, well-centred drill point and a head geometry that resists cam-out.
2. Aesthetic exposure
On a roof, the fastener is hidden by overlapping sheets or obscured by pitch and distance. On a wall, the fastener head is visible from eye level. Head profile, colour, and finish matter significantly in cladding applications — especially where the fastener penetrates the panel face rather than the concealed lap.
3. Corrosion visibility
A corroding roofing fastener first manifests as a leak — a functional failure. A corroding cladding fastener first manifests as a rust streak on the building face — a visual failure that draws client attention far sooner. The consequence is that cladding applications in corrosive environments have less tolerance for surface treatment downgrades.
The two most common head types for metal cladding self-drilling screws are the hex washer head and the pan head. They are not interchangeable — each is designed for a specific installation context.

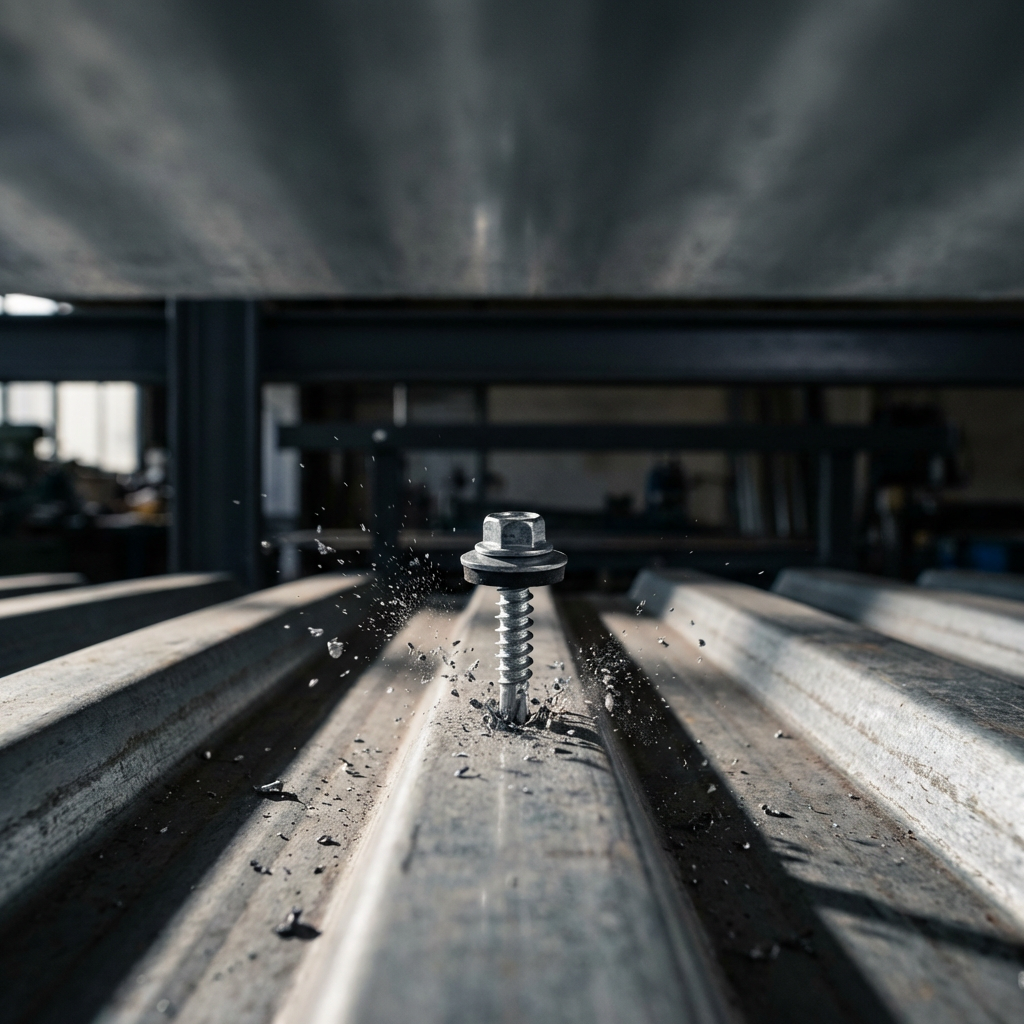

The hex washer head is a six-sided (hexagonal) head designed to be driven by a power tool fitted with a hex socket bit. It is the standard head type for exposed fixing of profiled metal cladding panels.
Why hex for cladding?
The hex drive delivers significantly higher torque than a Phillips or Torx drive of equivalent head size, without the cam-out tendency of Phillips. For a cladding installer driving hundreds or thousands of screws per day, this means consistent seating depth without over-driving — critical when the EPDM washer must be compressed to exactly the right degree to form an effective seal without being deformed.
The EPDM rubber washer bonded to the underside of the hex head creates the weather seal at the fastener point. When correctly compressed, it prevents water ingress at the penetration point. When over-driven, the washer is damaged and the seal is compromised. The hex drive's consistent torque characteristics reduce over-driving incidents compared to Phillips drives.
Hex Indented Washer Head
A variant of the standard hex head, the hex indented head features a recessed area in the underside of the hex flange that concentrates compression stress more evenly across the EPDM washer. This provides a more consistent seal, particularly on curved or profiled cladding surfaces where the panel face is not perfectly flat under the head.
The pan head is a low-profile, slightly domed head with a flat underside, driven by a Phillips cross-point driver. In cladding applications, it is used for:
Structure fixing to heavy steel substrates where the pan head's lower bearing surface reduces stress concentrations in the substrate
Internal framing and secondary steel connections where a flush or low-profile head is required
Applications using a #5 drill point for penetrating thick structural steel (up to 12.5mm), where the higher torque requirement of structure fixing demands a pan head geometry compatible with power tool operation
The pan head is not the standard choice for exposed, weather-facing cladding fixings — the absence of an EPDM washer means it does not provide a sealed weatherpoint at the penetration. Where a pan head is used on an exposed face, it should be paired with a pre-formed EPDM-faced backing washer installed separately.
Thread pitch in cladding screws affects installation speed, holding power, and substrate compatibility.
Fine thread (#24 threads per inch):
Higher thread engagement per unit of screw length in steel
Faster advance per revolution — installs more quickly in hard steel substrates
Superior holding power in steel: the finer thread creates a more precise thread form in the substrate with less material removal per thread
Standard for structure fixing applications where the substrate is thick steel
Coarse thread (#14 threads per inch):
Standard for valley fixing and sheet-to-purlin connections
Better performance in softer substrates (timber, OSB, light gauge steel)
Greater gap between threads reduces risk of thread stripping in lower-strength materials
For metal-to-metal cladding fixing (cladding sheet to steel secondary framing or purlins), fine thread is generally preferred in substrates thicker than 2.0mm. Coarse thread performs adequately in light gauge steel framing (up to 1.5mm) and is the standard where the substrate is timber or composite.
The drill point determines maximum substrate thickness in a single pass.
The #3 drill point is the standard for cladding applications where:
The steel substrate (secondary framing, Z-girt, hat section) is between 0.8mm and 6.0mm thick (#12 gauge) or 0.8mm–7.0mm thick (#14 gauge)
The cladding sheet is standard metal (steel, aluminium, 0.5–1.5mm)
No pre-drilling is available or desired
Drilling capacity by gauge:
The #5 drill point is the specification for:
Structural steel framing connections where the substrate is 6.0mm to 12.5mm thick
Fixing cladding backing rails, angle brackets, or support structure to thick steel columns or beams
Any application where pre-drilling would otherwise be required
The #5 point's more aggressive cutting geometry removes material faster, which generates more heat. For this reason, installation speed should be moderated when using a #5 point — allowing the cut to clear properly before the thread engages reduces point heat and extends tool life.
The #5 point is available in both #12 and #14 gauge for structure fixing applications, paired with a Phillips pan head and fine (#24) thread as standard.
For fixing profiled steel or aluminium cladding sheets to steel purlin or secondary framing through the valley (low point) of the profile.
TSR Valley Fixing Range:
Sizes: 12-14×16mm through 14-14×95mm
Material: C1022A carbon steel with heat treatment
Surface: Ruspert AS3566 Class 3/Class 4, or Zinc Plated
For fixing backing rails, brackets, and framing connections to structural steel substrates.
TSR Structure Fixing Range:
Sizes: 12-24×32mm through 14-24×95mm
Max substrate: 12.5mm steel (with no pre-drilling)
For fixing wall panels, secondary structure, or pull-out components to steel framing.
TSR Wall/Structure Range:
Hex washer head with or without EPDM washer, depending on whether a weather seal is required at the fastener head.
For fixing cement fibreboard, standard fibreboard, wood, or OSB to light gauge steel framing — a common requirement in internal wall lining and external insulated cladding systems.
The expansion wings screw addresses a specific installation problem: when drilling through board material into steel, the drill point must penetrate the soft board before it reaches the hard steel substrate. Standard self-drilling screws over-drill the board — the hole diameter in the board becomes larger than the thread, and the thread cannot grip.
How expansion wings work:
The expanded wing design adds two lateral cutting blades just above the drill point. These blades cut a slightly oversized hole through the board material as the screw is driven. When the wings contact the steel substrate, they cannot penetrate and break off cleanly against the steel face. The thread then engages only the steel, pulling the board tightly against the framing without the thread stripping in the board.
An embossed stop ring on the underside of the head prevents over-driving, ensuring the head seats firmly without crushing the board material.
The facade is the most visually prominent element of a building. A corrosion failure on a cladding fastener is immediately visible as a rust streak. This means the consequence of specifying insufficient surface treatment is not just a structural issue — it is a customer relations issue.
Apply the AS3566 classification framework to cladding environments:
For facades within 1km of the coast, the standard recommendation is Ruspert Class 4. For marine environments with direct salt spray exposure, stainless steel or bi-metal fasteners should be specified even where the base material is carbon steel — the coating alone is insufficient for the design life.
Ruspert coating is a multi-layer treatment (zinc flake + binder + sealant) that provides substantially higher corrosion resistance than electroplated zinc. Zinc plating on a carbon steel cladding screw will fail within 3–5 years in a standard outdoor environment. Ruspert Class 3 at 480–1000 hours NSS resistance corresponds to a practical service life of 20+ years in inland environments.
Always specify Ruspert Class 3 minimum for any externally exposed cladding fastener. Zinc plating is acceptable only for internal, sheltered, or temporary applications.
On exposed cladding faces — particularly flat panel or cassette systems — the fastener head colour should match the panel colour to minimize visual disruption. Most cladding screw manufacturers offer a powder coat or paint finish that can be matched to Colorbond and RAL colours.
When specifying colour-matched fasteners:
Confirm the colour code against the final panel specification before ordering
Allow additional lead time — standard colour fasteners are stock items, colour-matched variants are made to order
Request a colour sample for approval before bulk production
The surface treatment beneath the colour coat remains Ruspert Class 3 or 4 — the colour coat is cosmetic, not a corrosion protection layer.
Before finalising your cladding fastener specification:
Panel type: profiled metal, flat cassette, aluminium composite, or fibreboard/insulated panel?
Substrate: light gauge steel framing, heavy structural steel, timber, or OSB?
Substrate thickness: determines drill point (#3 or #5) and thread pitch (fine or coarse)
Exposure: will the fastener head be visible on the finished facade?
Environment classification: inland, coastal, or marine (AS3566 Class 1–4)?
Required surface treatment: Ruspert Class 3/4, SS410, or bi-metal?
Washer requirement: EPDM for weather seal at exposed heads?
Colour matching: does the head need to match panel colour?
Drive type: hex for hex socket tools, Phillips for Phillips bits?
Installation team tool compatibility: confirm driver type before committing to head drive specification
The hex washer head and the pan head are both correct cladding fasteners — for different jobs. The hex washer head, paired with a coarse thread and EPDM washer, is the standard exposed-fixing fastener for profiled metal cladding in valley or top-of-rib positions. The pan head, paired with fine thread and a #5 point, is the structure fixing fastener for heavy steel substrates where the connection is not weather-exposed.
Getting this distinction right — along with environment classification, thread pitch, and surface treatment — takes the guesswork out of cladding fastener specification and protects both the building and the project warranty.
