Why Gauge Matters More Than Length

Most people spec insulation fasteners by length first. This is understandable — you need to penetrate through the insulation board to reach the deck. But length is secondary to gauge.

Gauge determines:

• Shank diameter — the structural core of the fastener, which carries the bending load and generates torque during installation

• Thread diameter — the outer dimension of the thread, which creates the bearing surface in the substrate

• Pullout resistance — the force required to extract the fastener from the deck under wind uplift loading

A longer fastener with an undersized shank will flex and fail under load. A correctly gauged fastener at the right length will perform for the life of the roof.

Here is the baseline specification for each gauge:

The shank diameter is the number that matters most. A 5.25mm shank generates significantly more torque and pullout resistance than a 4.3mm shank at the same length. In high-wind zones or when penetrating thick steel decks, this difference is the margin between a passing and failing uplift test.

#12 Standard Roofing Fasteners: The Light-to-Medium Duty Option

Shank diameter: 4.3mm
Thread diameter: 5.58mm
Head type: T30 Torx Pan Head
Deck compatibility: Steel up to 2.0mm, timber

The #12 is the entry-level insulation fastener — and in the right application, it is the correct choice.

When to Specify #12

The #12 gauge is designed for fixing insulation board to light gauge steel decks (up to 2.0mm) and timber substrates. It is suitable where:

• The insulation layer is relatively thin (up to approximately 125mm)

• The steel deck is not subject to heavy wind uplift loading

• The substrate is light gauge steel or timber rather than thick structural steel

• Project budgets favour a cost-effective fastener without sacrificing code compliance

Sizes Available

The #12 range covers lengths from 1-5/8" (41mm) through 8" (203mm), accommodating most standard insulation thicknesses in commercial low-slope roofing.

Head Drive: T30 Torx

The T30 Torx drive offers a key installation advantage over Phillips: significantly higher torque transfer with lower cam-out risk. This is particularly relevant when driving through thick insulation boards, where resistance is higher and tool slip results in stripped heads that must be manually extracted.

Thread engagement in the substrate remains constant at 3–4" regardless of total fastener length — the unthreaded shank extends through the insulation board without engaging it, ensuring the board is pulled tight against the deck rather than lifted by thread engagement within the insulation.

Deep Buttress Thread

The #14's thread profile uses a deep buttress geometry — an asymmetric thread form with a near-vertical load-bearing face and an angled lead face. This geometry maximises pullout resistance in the deck while minimising driving torque during installation. The result is a faster installation with higher holding values, which is why the #14 is the fastener of choice for FM-approved roofing assemblies.

#15 Extra Heavy Duty Roofing Fasteners: Maximum Performance for Extreme Applications

Shank diameter: 5.25mm
Thread diameter: 6.99mm
Head types: #3 Phillips Truss Head (#15 TSR) / #3 Phillips Flat Head (#15 TSR Flat)
Deck compatibility: Steel up to 12.5mm+, OSB, aluminium

The #15 is the heaviest-duty insulation fastener in the range. Its 5.25mm shank is the largest in the insulation fastener category, generating the highest torque values and pullout resistance.

When to Specify #15

The #15 is specified for:

• Projects in extreme wind-load zones (hurricane-prone regions, high-altitude exposure categories)

• Thick insulation assemblies where the fastener length exceeds 10" and maximum pullout values are required

• Projects requiring the highest available pullout resistance per fastener, allowing a wider fastener spacing pattern that reduces overall fastener count

• Substrates that require the deepest thread engagement due to material variability

Truss Head vs. Flat Head

The #15 is available in two head configurations:

• #3 Phillips Truss Head (TSR-PHT15 series): A low-profile domed head with a wide bearing surface. The broad underside distributes clamping force over a larger area, reducing the risk of the head pulling through the seam plate. Preferred for most field applications.

• #3 Phillips Flat Head (TSR-PHT15 Flat series): A countersunk profile that sits flush or slightly below the plate surface. Used where a lower head profile is required to avoid interference with membrane layers applied over the fastener.

Both versions cover the same length range from 2" through 16", with the same thread engagement pattern as the #14.

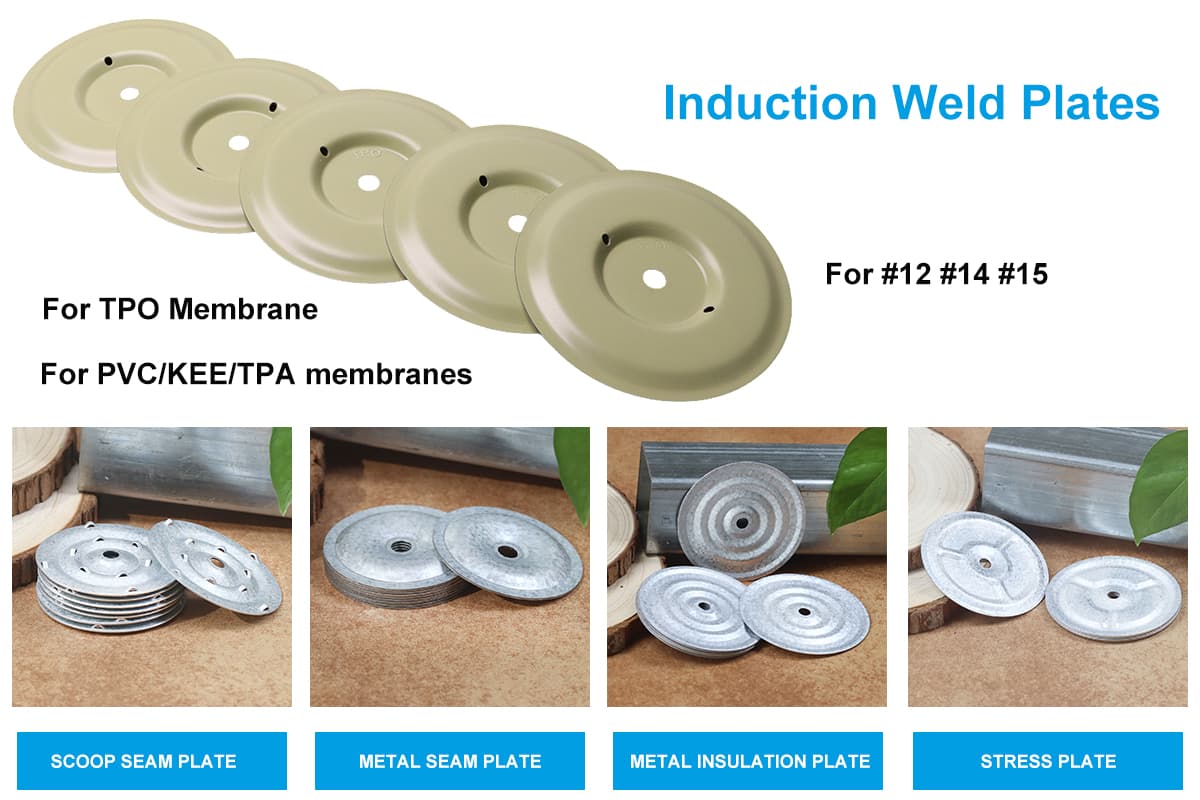

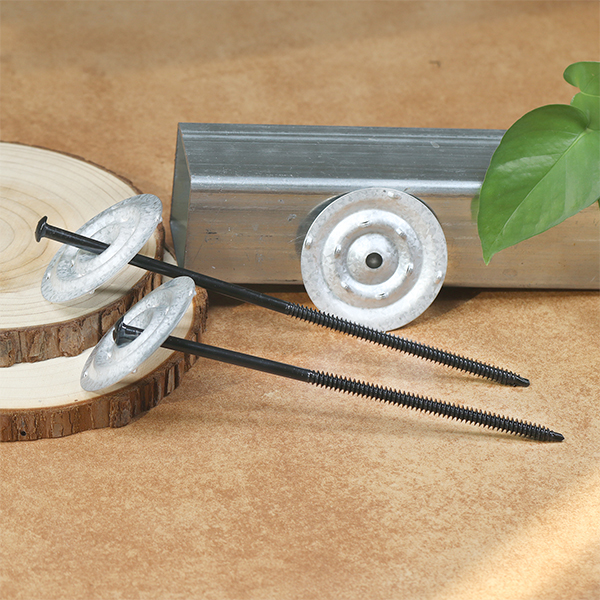

Matching Fasteners to Metal Seam Plates

Insulation roofing fasteners are never used alone — they are always paired with a metal seam plate (also called a stress plate or pull-out plate), which distributes the point load of the fastener head across the membrane surface.

Using the wrong plate — or no plate — concentrates stress at the fastener head and causes membrane puncture under wind uplift. Plate selection must be matched to both the fastener gauge and the membrane type.

Standard Metal Seam Plate Pairings

All plates in the TSR range are manufactured from AZ-55 Galvalume steel, which provides long-term corrosion resistance compatible with FM4470 requirements.

Barbed vs. Non-Barbed Plates

Barbed plates feature radial serrations on the underside that grip the membrane surface and resist rotation during and after installation. They are required for reinforced membranes and modified bituminous systems, where the membrane fabric is stiff enough that a smooth plate would rotate under torque without properly clamping the membrane.

Non-barbed plates are used with unreinforced single-ply membranes (TPO, PVC), where the smooth plate can compress the membrane without risk of tearing it during installation.

Surface Treatment: CR-10 Standard and Custom Options

All #12, #14, and #15 insulation roofing fasteners in the TSR range carry the CR-10 corrosion resistant coating as standard.

CR-10 is a multi-layer chemical conversion coating that provides:

• Baseline salt spray resistance suitable for standard commercial roofing environments

• Compatibility with FM4470 system requirements

• A neutral grey finish that does not interfere with membrane bonding

For projects with more demanding corrosion requirements — coastal exposure, chemical atmospheres, or extended warranties — custom coating options are available:

• 500–2000 hours NSS (Neutral Salt Spray) testing per ASTM B117

• 5–30 cycles of Kesternich (SO₂ corrosion) testing per DIN 50018

Custom-treated fasteners should be specified with the relevant test certification to support system warranty documentation.

Quick Selection Guide

Use this table as a starting point for gauge selection:

Always verify fastener selection against the relevant FM approval or system test data. The gauge selection above is a general guide; project-specific wind uplift calculations may require a higher specification than the minimum indicated.

Conclusion

The difference between a #12, #14, and #15 insulation roofing fastener is not arbitrary. Each gauge represents a specific shank diameter, thread geometry, and pullout capacity designed for a defined range of substrates and loading conditions.

For most commercial insulation roofing applications, the #14 Heavy Duty is the correct default. It provides the shank diameter, thread engagement, and length range to handle the majority of low-slope roofing assemblies, and it aligns with the most widely tested FM4470-approved systems.

When the application pushes beyond standard conditions — thick insulation, extreme wind uplift, or maximum pullout requirements — step up to the #15 Extra Heavy Duty.

When cost is critical and the deck is light gauge steel or timber with moderate loading, the #12 Standard is a compliant and cost-effective choice.

For project-specific specification support, contact info@tsingri.com for the full product range and technical data sheets.
