Views: 811 Author: Tsingri Screw Publish Time: 2026-05-08 Origin: Tsingri Screw
A wooden deck is a major investment in outdoor living, and it is built to be exposed to the elements for decades. But the longevity of that deck isn't just determined by the quality of the timber; it is dictated by the fasteners that hold it together.
In outdoor timber construction, the fastener is subject to constant moisture, temperature fluctuations, and — most importantly — the corrosive chemicals present in modern pressure-treated lumber. Choosing the wrong decking screw leads to "bleeding" (dark stains on the wood), loose boards, and eventually, structural failure.
This guide breaks down the material options for decking screws, explains why the Torx drive and Type 17 point have become the industry standard, and provides a framework for selecting the right fastener for your timber project.
Standard wood screws are designed for interior use or sheltered environments. Decking screws are engineered for high-performance outdoor service. They differ in three key areas:
Corrosion Resistance: They must resist the copper-based chemicals used in pressure-treated wood (ACQ and MCQ), which are highly corrosive to bare steel.
Drive System: Most premium decking screws use a Torx (Star) drive instead of Phillips to allow for higher torque without cam-out.
Point Design: Many feature a Type 17 "gash" or "slash" point that drills its own pilot hole, preventing the timber from splitting.
The material you choose is the single biggest factor in the fastener's lifespan.
1. Stainless Steel 304 (Grade A2)
SS304 is the most common grade of stainless steel for decking screws. It contains chromium and nickel, providing excellent corrosion resistance in standard outdoor environments.
Best for: Most inland decking projects, freshwater lakefronts, and standard residential landscapes. It will not stain pressure-treated lumber and maintains structural integrity for decades.
2. Stainless Steel 316 (Grade A4 / Marine Grade)
SS316 contains molybdenum, which significantly increases its resistance to pitting corrosion in chloride-rich environments — specifically saltwater and sea spray.
Best for: Any project within 5km of a coastline, docks, piers, and decks near saltwater pools. If your project is in a marine zone, SS316 is the only acceptable specification.
3. Coated Carbon Steel (Ruspert / Class 3)
Carbon steel decking screws are heat-treated for extreme strength but require a high-performance coating to survive outdoors. These are often coated in green or tan Ruspert to match the timber colour.
Best for: Budget-conscious projects in dry inland areas, or internal structural timber framing that will not be visible. Note that even the best coatings have a finite life compared to solid stainless steel.
If you've ever spent a day driving Phillips-head screws into hardwood, you know the frustration of cam-out — where the bit slips out of the head, stripping the screw and damaging your driver bit.

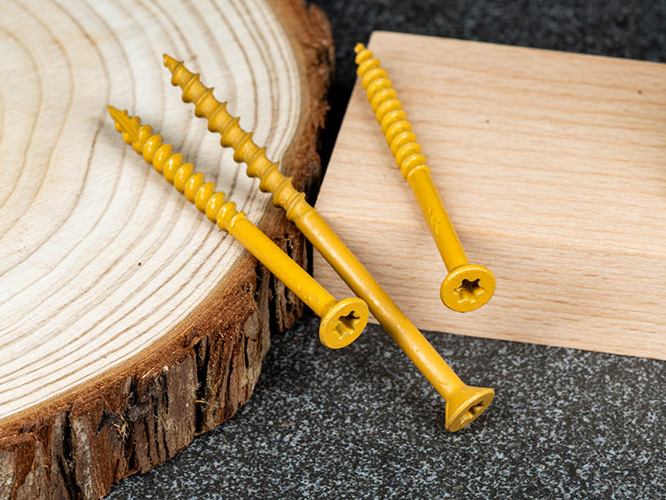

Decking screws have moved almost exclusively to the Torx (6-Lobe) Drive:
Zero Cam-Out: The star shape allows for vertical sidewalls, meaning the bit stays seated even under extreme torque.
Better Power Transfer: More surface area for the driver bit to grip means you can drive longer screws into denser hardwoods with less effort.
Reduced Fatigue: Because you don't have to push down as hard to prevent slipping, your arms and tools last longer.
For TGR decking screws, we standardise on T20 or T25 Torx drives, ensuring a professional installation experience every time.
Standard wood screws are designed for interior use or sheltered environments. Decking screws are engineered for high-performance outdoor service. They differ in three key areas:
Corrosion Resistance: They must resist the copper-based chemicals used in pressure-treated wood (ACQ and MCQ), which are highly corrosive to bare steel.
Drive System: Most premium decking screws use a Torx (Star) drive instead of Phillips to allow for higher torque without cam-out.
Point Design: Many feature a Type 17 "gash" or "slash" point that drills its own pilot hole, preventing the timber from splitting.
The material you choose is the single biggest factor in the fastener's lifespan.
1. Stainless Steel 304 (Grade A2)
SS304 is the most common grade of stainless steel for decking screws. It contains chromium and nickel, providing excellent corrosion resistance in standard outdoor environments.
Best for: Most inland decking projects, freshwater lakefronts, and standard residential landscapes. It will not stain pressure-treated lumber and maintains structural integrity for decades.
2. Stainless Steel 316 (Grade A4 / Marine Grade)
SS316 contains molybdenum, which significantly increases its resistance to pitting corrosion in chloride-rich environments — specifically saltwater and sea spray.
Best for: Any project within 5km of a coastline, docks, piers, and decks near saltwater pools. If your project is in a marine zone, SS316 is the only acceptable specification.
3. Coated Carbon Steel (Ruspert / Class 3)
Carbon steel decking screws are heat-treated for extreme strength but require a high-performance coating to survive outdoors. These are often coated in green or tan Ruspert to match the timber colour.
Best for: Budget-conscious projects in dry inland areas, or internal structural timber framing that will not be visible. Note that even the best coatings have a finite life compared to solid stainless steel.
If you've ever spent a day driving Phillips-head screws into hardwood, you know the frustration of cam-out — where the bit slips out of the head, stripping the screw and damaging your driver bit.
Decking screws have moved almost exclusively to the Torx (6-Lobe) Drive:
Zero Cam-Out: The star shape allows for vertical sidewalls, meaning the bit stays seated even under extreme torque.
Better Power Transfer: More surface area for the driver bit to grip means you can drive longer screws into denser hardwoods with less effort.
Reduced Fatigue: Because you don't have to push down as hard to prevent slipping, your arms and tools last longer.
For TGR decking screws, we standardise on T20 or T25 Torx drives, ensuring a professional installation experience every time.
Wood is a natural, cellular material. When you drive a thick screw into it without pre-drilling, you displace the wood fibres, creating internal pressure that often causes the board to split at the ends.

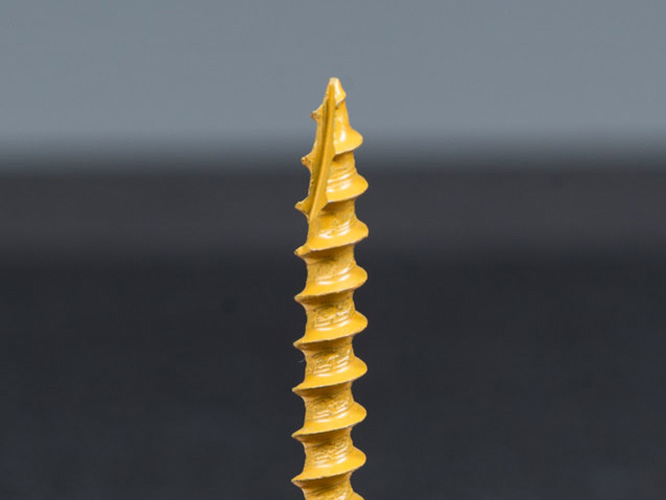

The Type 17 point solves this:
It features a sharp, needle-point tip with a cut-out "gash" on the first few threads.
As the screw turns, this gash acts like a drill bit, cutting and removing wood fibres rather than just pushing them aside.
This creates its own pilot hole as it goes, virtually eliminating timber splitting even when fixing close to the end of a board.
Common sizes:
5.0 x 50mm (Standard for 19mm - 22mm decking boards)
5.0 x 60mm (For thicker 25mm+ boards)
5.0 x 80mm / 100mm (For framing and joist connections)
Environment: Is it within 5km of the sea? (If yes, use SS316).
Timber Type: Are you using ACQ pressure-treated wood? (Use Stainless Steel).
Hardwood vs Softwood: Denser hardwoods like Ipe or Merbau require pre-drilling even with Type 17 points, but the point still helps with positioning.
Visual Finish: Do you want the heads flush or countersunk? (Choose ribbed heads).
Driver Compatibility: Ensure your crew has the correct Torx T25 bits on hand.
A deck is only as strong as its weakest screw. By specifying SS304 or SS316 stainless steel with a Torx drive and Type 17 point, you ensure an installation that is fast, aesthetically clean, and structurally sound for the long term.
Don't let rust or cam-out ruin a beautiful timber project. Specify the right material for your environment and the right technology for your crew.
