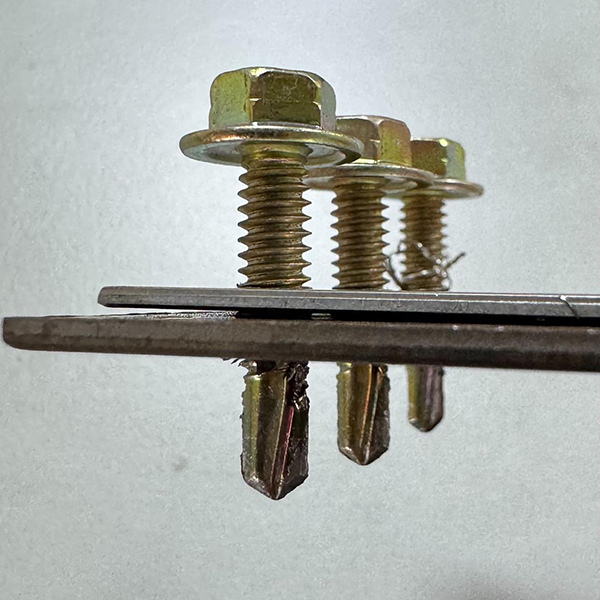

Self-drilling screws are a multipurpose and efficient fastening solution for metal-to-metal applications. Unlike traditional screws, they avoid the need for pre-drilling pilot holes, saving time and effort. Whether you're working with sheet metal, steel framing, or other metal materials, self-drilling screws provide a secure and durable connection.
What Are Self-Drilling Screws?
Self-drilling screws, also known as Tek screws®, feature a drill bit-like tip that cuts through metal as it’s driven in. This design allows them to create their own pilot hole, aving the need for separate drilling.
Key Features:
- Drill Point Tip – Thunder Point drill to penetrate metal.
- Thread Design – Provides strong holding power.
- Head Types – Hex head, pan head, flat head, or washer head for different applications.
- Coatings – Zinc plated, galvanized, or stainless steel for corrosion resistance.
Types of Self-Drilling Screws for Metal
Choosing the right screw depends on the metal thickness and application.
1. Sheet Metal Self Drilling Screw
- Used for thin metal sheets (up to 12mm).
- Fine threads for better grip.
2. Heavy Duty Self Drilling Screws
- Designed for thicker metals (up to 20mm).
- Longer drill points and stronger shafts.
3. Hex Head Self Drilling Screws
- Provides extra torque resistance.
- Ideal for structural metal framing.
4. Stainless Steel Self Drilling Screws
- Best for corrosive environments (e.g. acid or marine applications).
Application: How to Use Self-Drilling Screws in Metal
Step 1: Select the Right Screw
- Match the screw length to the metal thickness (the drill tip should fully penetrate).
- Choose the correct head type (hex for high torque, flat for flush fit).
Step 2: Prepare the Workpiece
- Clean the metal surface to remove debris or rust.
- Clamp or secure the metal to prevent movement.
Step 3: Position the Screw
- Place the screw perpendicular to the metal surface.
- Apply firm pressure to prevent walking
Step 4: Drive the Screw
- Use a drill driver at medium speed.
- Let the screw’s tip do the work—avoid forcing it.
- Stop once the head is flush
Step 5: Inspect the Connection
- Ensure the screw is secure and not loose.
- Check for proper penetration, no gaps.

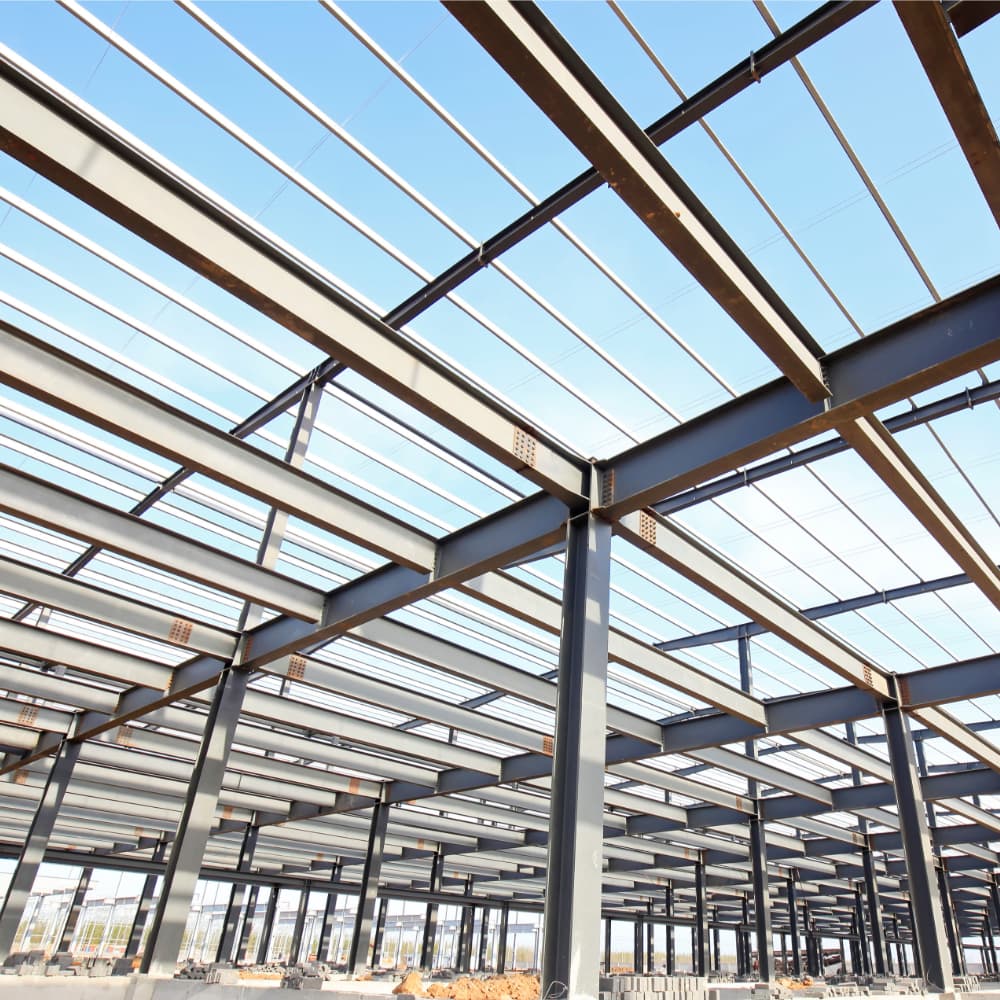

Metal Steel Framing

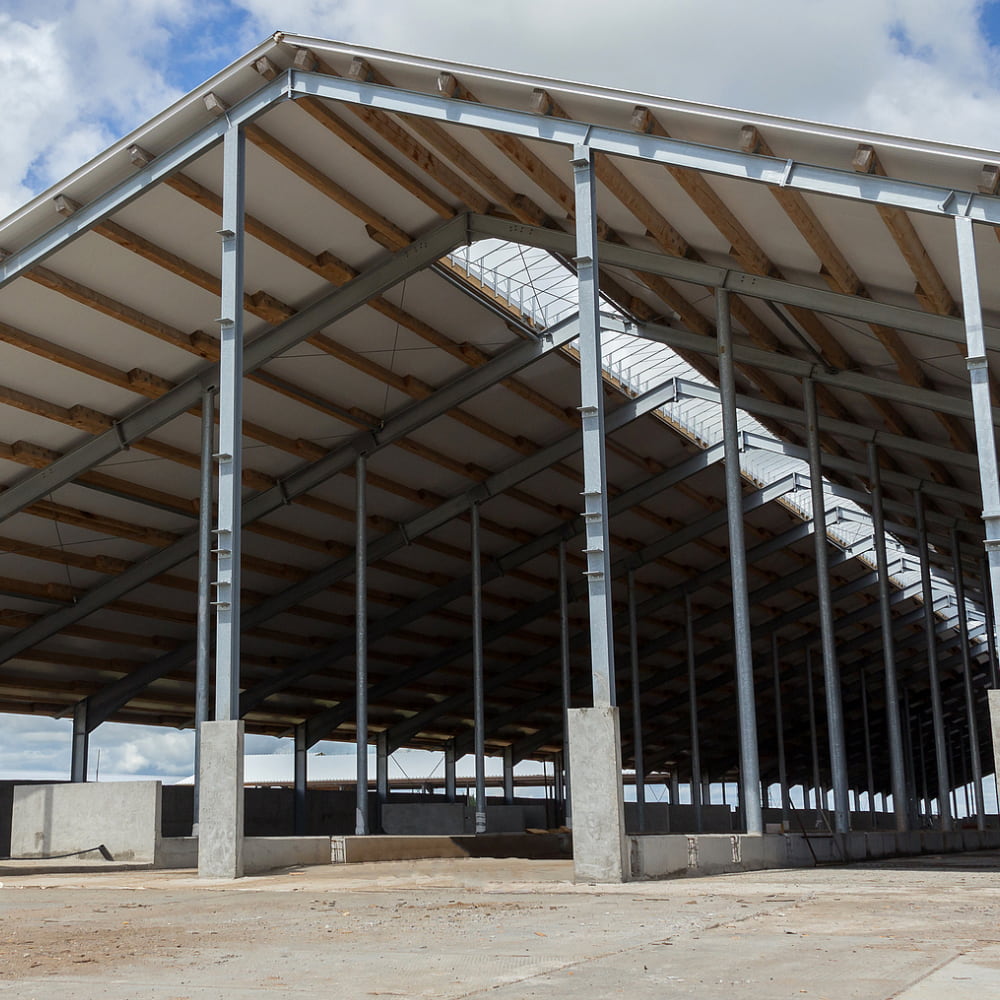

Sheet Metal Roofing

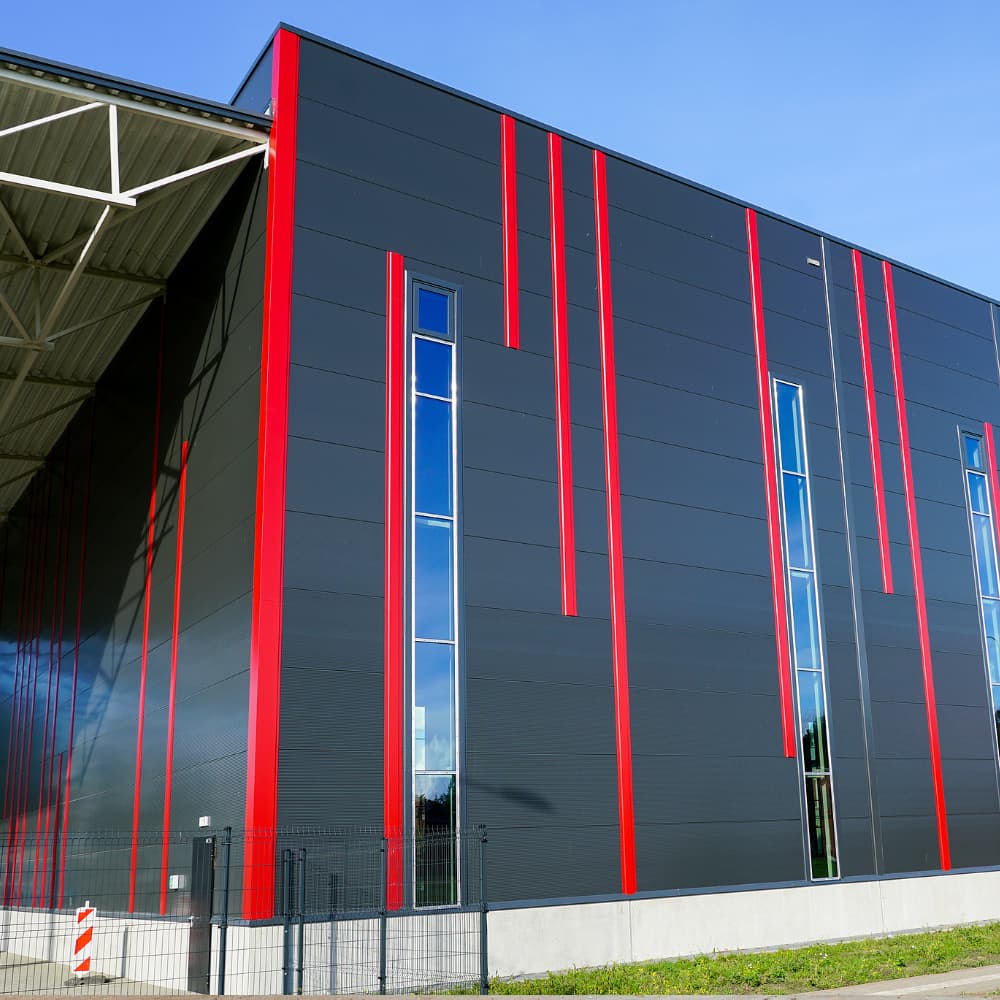

Composite Wall Cladding
Common Mistakes to Avoid
1. Using the Wrong Screw Type
- Thin screws may break in thick metal.
2. Incorrect Speed or Pressure
- Too fast = overheating.
- Too slow = poor penetration.
3. Over-Tightening
- Can strip threads or deform metal.
4. Ignoring Corrosion Protection
- Without proper corrosion resistance, screws can rust, weaken, and break over time, compromising structural integrity
Self-drilling screws simplify metal fastening by combining drilling and screwing into one step. By selecting the right type, following proper techniques, and avoiding common mistakes, you can achieve strong, reliable connections in any metal project. For best results, always match the screw to your metal thickness and environmental conditions.
FAQ Section
Q: What is a self drilling screw used for？
A: Normally used to fasten metal, wood, or plastic without pre-drilling. Their drill-bit tip cuts through material while the thread secures it. Common in construction, roofing, HVAC.
Q: What’s the difference between self-drilling and self-tapping screws?
A: Self-drilling screws drill their own hole, while self-tapping screws only cut threads into a pre-drilled hole.
Q: How do I remove a stuck self-drilling screw?
A: Use a screw tool that drill it out carefully.
